Appendix B

<< Previous | Appendix C: Schematics (zip)

Connector Pinouts

The QCard Controller Starter Kit comprises a stack of two boards: the PowerDock Board, and the smaller QCard Board. Pin-outs for all I/O connectors on the QCard Board and the PowerDock Board are provided here.

QCard Connectors

The pinouts of all of the connectors on the QCard Board are presented below.  To locate the connectors on the board, consult Figure B–1  and the white silk–screened labels on the visible side of the QCard Board.  The arrows in the figure point to the locations of pin 1 on each connector.

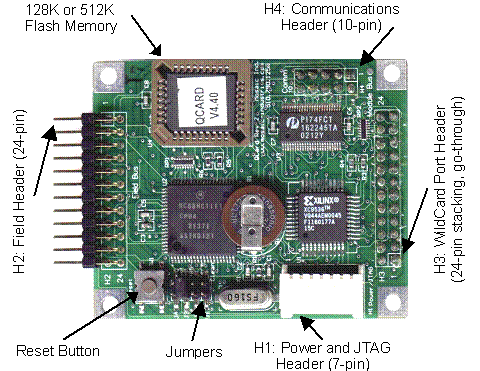

Figure B–1   QCard Connectors and Switches.  Arrows locate pin 1 of each header.



Table B‑1     H1: Power Header

Pin



Signal



1

–

V+RAW (+8 to +26 VDC)



2

–

GND



3

–

+5 VDC



4

–

TDI for JTAG programming



5

–

TMS for JTAG programming



6

–

TCK for JTAG programming



7

–

TDO for JTAG programming





Note:  V+RAW is needed only if certain WildCards are used.  Pins 4-7 are generally not used.



Table B‑2    H2: Field Header

Signal



Pins



Signal

GND

–

1

2

–

+5V

AGND

–

3

4

–

V+RAW

/TxD1 (/TxD2)

–

5

6

–

/RxD1 (/RxD2)

XCVR- (/TxD2)

–

7

8

–

XCVR+ (/RxD2)

PA7

–

9

10

–

PA6

PA5

–

11

12

–

PA4

PA3

–

13

14

–

PA2

PA1

–

15

16

–

PA0

PE7

–

17

18

–

PE6

PE5

–

19

20

–

PE4

PE3

–

21

22

–

PE2

PE1

–

23

24

–

PE0

Note:  Signals in parentheses indicate options configured by installing appropriate zero ohm shorts on the board.



H3: WildCard Port Header

Signal



Pins



Signal



GND

–

1

2

–

+5V



/IRQ

–

3

4

–

V+Raw



SEL1/XMIT-

–

5

6

–

SEL0/XMIT+



MOSI/XCV-

–

7

8

–

MISO/XCV+



/RESET

–

9

10

–

SCK



/MOD.CS

–

11

12

–

16 MHz



E

–

13

14

–

R/W



/OE

–

15

16

–

/WE



AD7

–

17

18

–

AD6



AD5

–

19

20

–

AD4





AD3

–

21

22

–

AD2



AD1

–

23

24

–

AD0



Table B‑3    H4: Communications Header

Signal



Pins



Signal

/TxD1

–

1

2

–

/RxD1

DGND

–

3

4

–

/MOD1.CS

RS485 XCVR-

–

5

6

–

RS485 XCVR+

/TxD2

–

7

8

–

/RxD2

DGND

–

9

10

–

+VBAT

Note:  This pinout differs from that of the PowerDock pinout: on the PowerDock pin 4 is connected to DGND and pin 10 is connected to +5V.

PowerDock Connectors

The pin-outs of all of the connectors on the PowerDock are presented below.  To locate the connectors on the board, consult Figure B‑2  and the white silk–screened labels on the PowerDock.

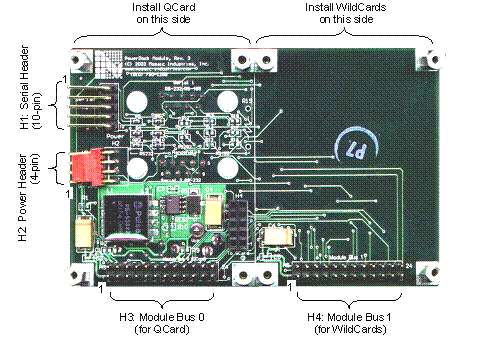

Figure B‑2    Headers on the PowerDock.  The small numeral 1 locates pin 1 on each header.

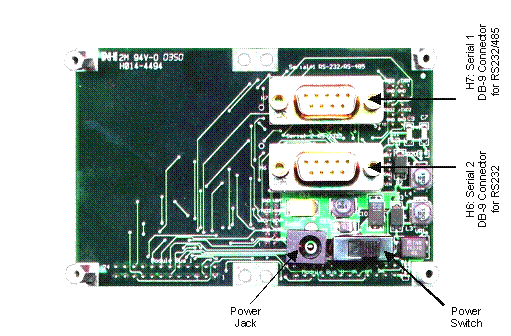

Figure B‑3    Serial Connectors, Power Jack, and Power Switch on the Back of the PowerDock.



Table B‑4   H2: Power Header

Pin



Signal

1

–

VIN (8 to 26 Volts)

2

–

GND

3

–

+5 VDC

4

–

VBAT



Table B‑5   H1: Serial Communications Connector

Signal



Pins



Signal



/TxD1

–

1

2

–

/RxD1



GND

–

3

4

–

GND



RS485 XCVR-

–

5

6

–

RS485 XCVR+



/TxD2

–

7

8

–

/RxD2



GND

–

9

10

–

+5V





Note:  This pinout differs from that of the QCard pinout: on the QCard pin 4 is connected to /MOD1.CS and pin 10 is connected to VBAT.





Table B‑6   H3 & H5: Wildcard Port Headers

Signal



Pins



Signal

GND

–

1

2

–

+5V

/IRQ

–

3

4

–

V+Raw

PG1/XMIT-

–

5

6

–

PG0/XMIT+

MOSI/XCV-

–

7

8

–

MISO/XCV+

/RESET

–

9

10

–

SCK

/MOD.CS

–

11

12

–

16 MHz

E

–

13

14

–

R/W

/OE

–

15

16

–

/WE

AD7

–

17

18

–

AD6

AD5

–

19

20

–

AD4

AD3

–

21

22

–

AD2

AD1

–

23

24

–

AD0



 Table B‑7      Serial 1 Connector                     Table B‑8       Serial 2 Connector

Signal

Pins

Signal



Signal

Pins

Signal

DCD1/DSR1/DTR1

–

1









DCD2

–

1













6

–

DSR1/DTR1/DCD1









6

–

DSR2/DTR2/DCD2

/TXD1

–

2









/TXD2

–

2













7

–

CTS1









7

–

CTS2/RTS2

/RXD1

–

3









/RXD2

–

3













8

–

RTS1









8

–

RTS2/CTS2

DSR1/DTR1/DCD1

–

4









DSR2/DTR2/DCD2

–

4













9

–

NC









9

–

NC

DGND

–

5









DGND

–

5







Notes:



Notes:

NC indicates no connection



NC indicates no connection

Pins 1, 4 and 6 (DCD1/DSR1/DTR1) are connected.



Pins 1, 4 and 6 (DCD2/DSR2/DTR2) are connected.

Pins 7 and 8 (CTS1/RTS1) are connected.



Pins 7 and 8 (CTS1/RTS1) are connected.
